Digital Design

Computer Organization and Digital Design 2nd Semester

Advantages of Digital

  • Reproducibility of results
  • Ease of Design
  • Flexibility
  • Programmability
  • Speed

Logic Levels

  • Ideally : HIGH(1) and LOW(0)
  • Practically : In CMOS
    • HIGH: 2V - 3.3V
    • LOW: 0V - 0.8V

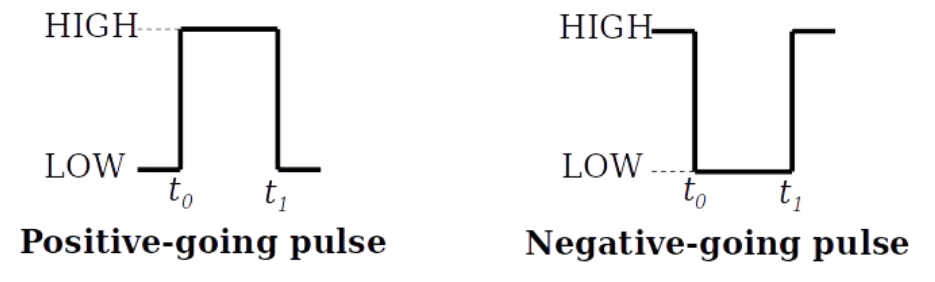

Digital Waveforms

Digital waveforms

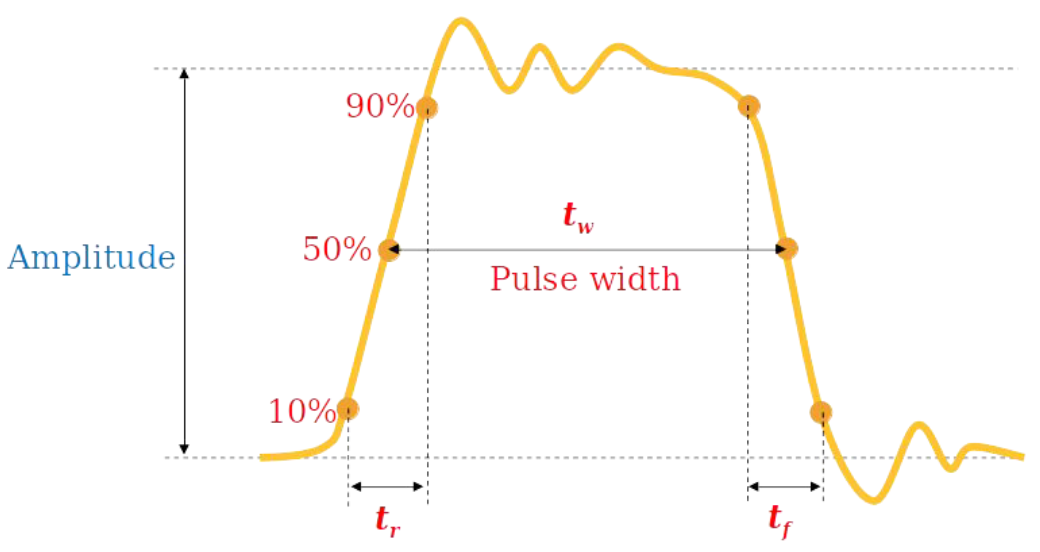

Non-ideal Pulse

Non Ideal pulse

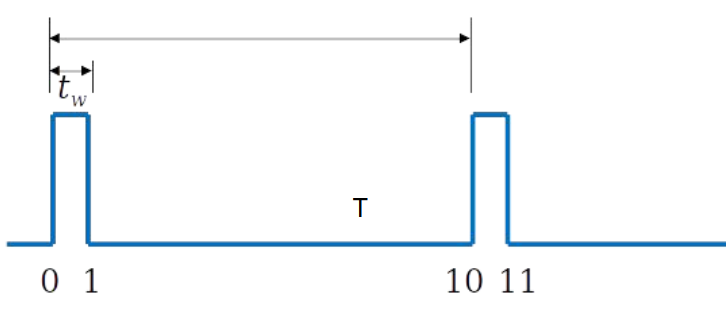

Duty Cycle

Duty Cycle

Digital Logic Families

Collection of different integrated circuit chips that have:

  • Similar input, output and internal circuit characteristics
  • Methods to implement all necessary logic functions

Chips from the same family can be interconnected to perform any desired logic function

Chips from different logic families may not be compatible

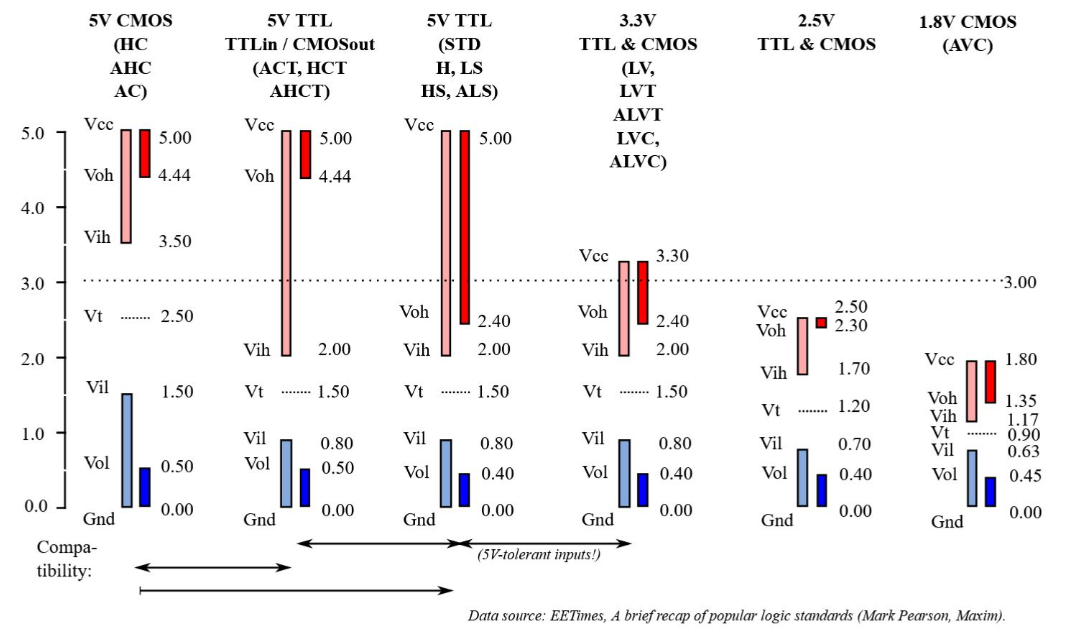

Logic families

Electrical behavior of Logic Families

  • Logic Voltage level
  • DC noise margins : Highest LOW voltage of an output must be always lower than the highest voltage that an output can reliably interpret as LOW
  • Fanout : Number of inputs connected to a given output
  • Speed
  • Power Consumption
  • Noise / Interference : Cosmic Rays
  • Electrostatic discharge

Binary Data transfer

  • Serial : Send one bit at a time
  • Parallel : All bits in a group are sent out on separate lines at the same time
  • Serial vs Parallel: Serial use less transmission lines Takes more time to transfer
